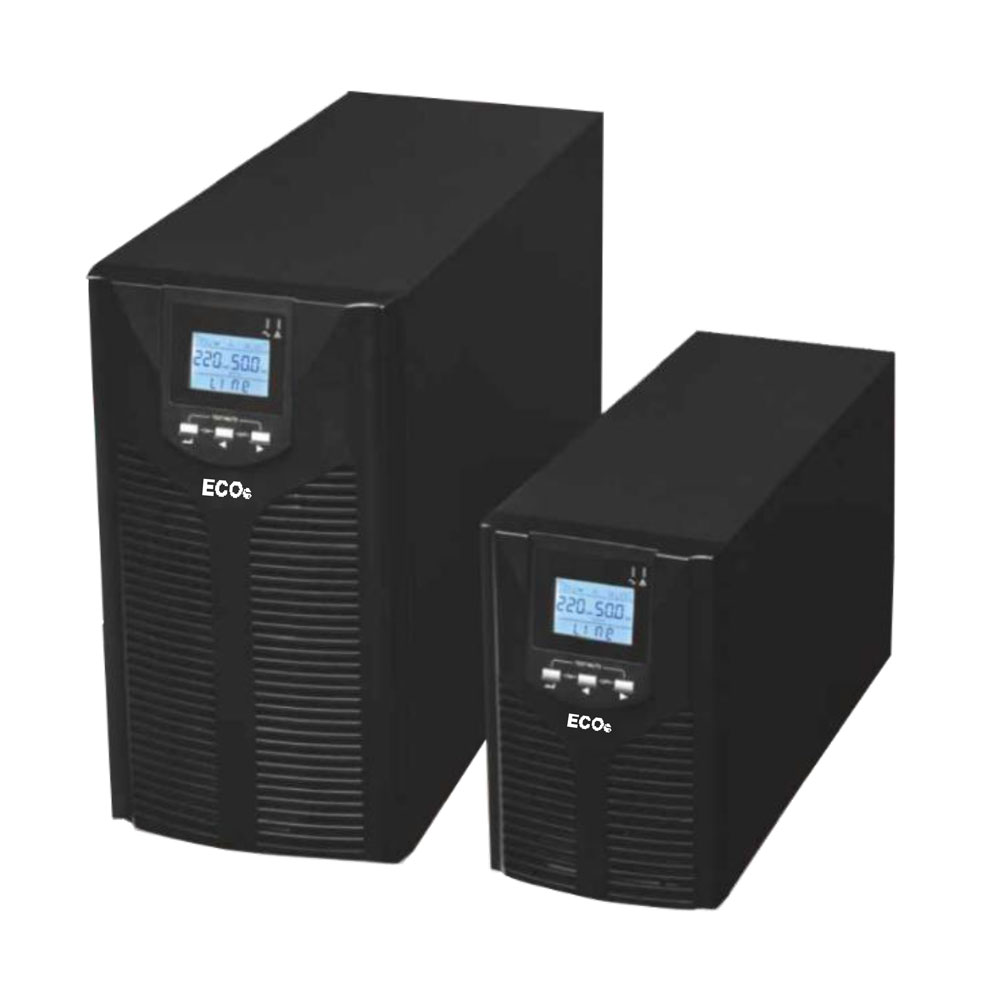

ECOs Online 1 Phase UPS 1kVA – 3kVA EC1KT9~EC3KT9 / EC1KS~EC3KS
- [Download Catalogue]
- ECOs-1phase-Tower-1-3KVA.pdf (0.82Mb)
Specifications ECOs Online 1 Phase UPS 1kVA – 3kVA EC1KT9~EC3KT9 / EC1KS~EC3KS
| MODEL | EC1KT9/EC1KS | EC2KT9/EC2KS | EC3KT9/EC3KS |
|---|---|---|---|
| Capacity | 1 kVA / 900W | 2 kVA / 1800W | 3 kVA / 2700W |
| Operation mode | Standby mode, Bypass mode, AC mode, Bat mode, Battery self test mode, ECO mode, CUCF mode | ||
| INPUT | |||
| Rated voltage | 1 phase 208 / 220 / 230 / 240 Vac (selectable) | ||
| Voltage range | 110-176Vac (linear derating between 50% and 100% load); 176-280Vac (no derating); 280-300Vac (derating 50%) | ||
| Frequency | 50/60Hz (auto-sensing); 40 ~ 70Hz | ||
| Power factor | ≥ 0.99 | ||
| Bypass voltage range | -25% ~ +15% (settable) | ||
| THDi | ≤ 5% | ||
| OUTPUT | |||
| Voltage | 1 phase 208 / 220 / 230 / 240 Vac (settable via LCD) | ||
| Voltage regulation | ± 1% | ||
| Frequency | 45-55Hz or 55-65Hz (synchronized range); 50-60Hz ±0.1Hz (battery mode) | ||
| Waveform | Pure sine wave | ||
| Power factor | 0.9 | ||
| THDv | ≤ 2% (linear load), ≤ 5% (non-linear load) | ||
| Crest factor | 3:1 | ||
| Overload | 105 ~ 125% for 1 min; 125-150% for 30s; >150% for 300ms | ||
| Bat icon with flash | % load capacity (0-25% 26-50% 51-75%; 76-100%) | ||
| Sockets | Universal*1 or IEC*3 | Universal*2 or IEC*6 | Universal*2+ or IEC*6 |
| BATTERIES | |||
| DC voltage | 36V | 72V | 96V |
| Battery type | 12VDC, VRLA Sealed lead-acid, maintenance free battery, battery life ≥3 years | ||
| Inbuilt battery | 3*7Ah | 6*7Ah | 8*7Ah |
| Backup time at full load | 6-8 mins | ||
| Charging current | 1A (Long time model 6A) | ||
| Recharge time | 90% capacity restored in 3h | ||
| Charger output voltage | 40.7±0.6 | 81.3±1.2 | 108.4±1.6 |
| BAT status icon | % Battery capacity (0-25% 26-50% 51-75%; 76-100%); When the capacity of battery get low or battery disconnected, the battery status icon will flash | ||
| SYSTEMS | |||
| Efficiency | ≥ 90% (Mains mode) ≥ 85% (Battery mode) ≥ 95% (ECO mode) |
≥ 91% (Mains mode) ≥ 86% (Battery mode) ≥ 96% (ECO mode) |
≥ 92% (Mains mode) ≥ 87% (Battery mode) ≥ 97% (ECO mode) |
| Transfer time | Mains mode to battery mode: 0 ms. Inverter mode to bypass mode: 4 ms (typical) | ||
| Protections | Short-circuit, overload, overtemperature, battery discharge and fan testing protection | ||
| Communications | RS232 (standard) with UPS management software. Surge protection for network/ Fax/Modem; Intelligent slot; USB/RS485/dry contact/SNMP (optional) | ||
| Display & Control | LCD + LED Icon display: Load, Mute, Fan, Fault, BAT status Status information: In non-setting mode and In setting mode 2 light in panel: Inverter light and Fault light with warning code |
||
| OTHERS | |||
| Operation Temp. | 0 ~ 40°C | ||
| Storage temperature | -25 ~ 55°C (without battery) | ||
| Relative humidity | 0 ~ 95% (non-condensing) | ||
| Altitude | ≤ 1000m, derating 1% for each additional 100m | ||
| Fan | Convection cooling fan | ||
| IP rating | IP 20 | ||
| Noise level at 1m | ≤ 50dB | ||
| Dimensions (W*D*H), mm | 144*317*216 / 144*336*216 | 191*419*335 | 191*419*335 |
| Net weight (kg) | 12.8 / 6 | 23.1 / 10.5 | 29.4 / 11 |
DOCUMENTATION
- Please approach our authorized dealer/distributor for details.
- This data may be revised without prior notice. All pictures shown are for illustration purpose only.
