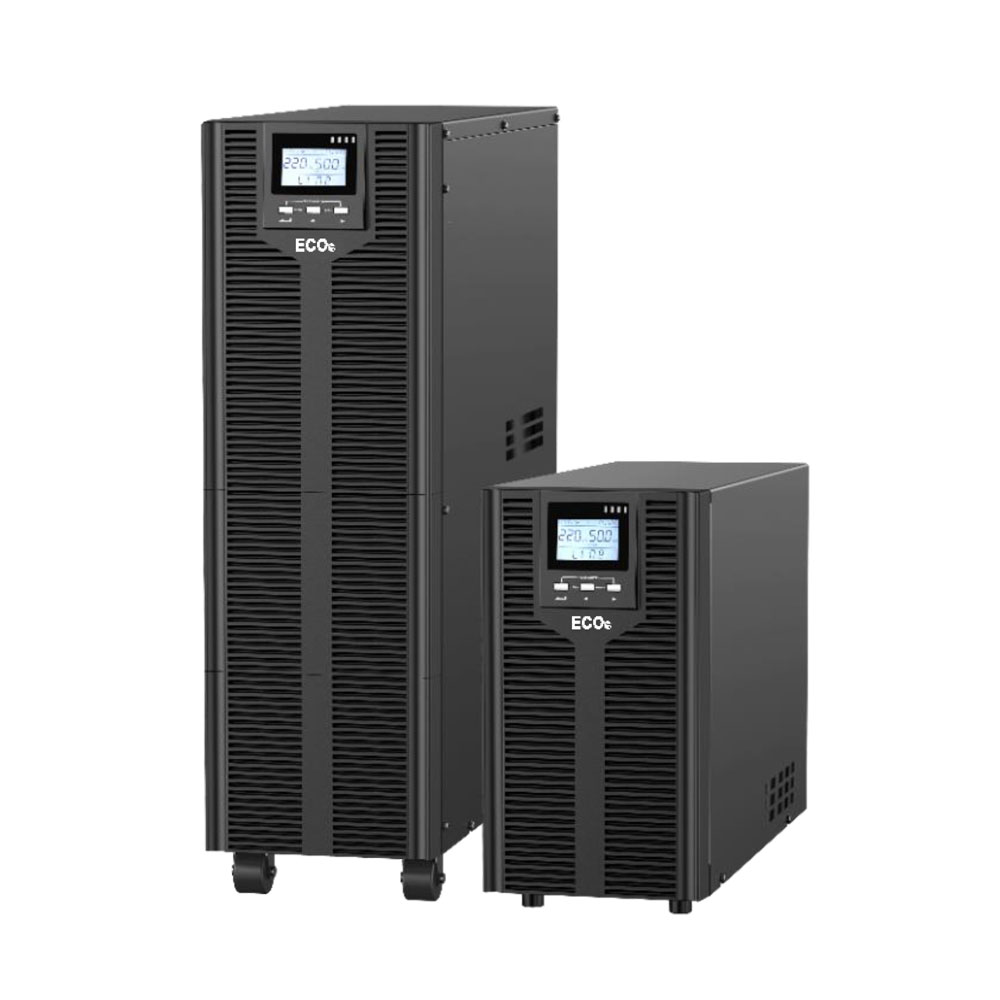

ECOs Online 1 Phase UPS 6kVA – 10kVA EC6KT9~EC10KT9 / EC6KS~EC10KS
- [Download Catalogue]
- ECOs-1phase-Tower-6-10KVA.pdf (0.27Mb)
Specifications ECOs Online 1 Phase UPS 6kVA – 10kVA EC6KT9~EC10KT9 / EC6KS~EC10KS
| MODEL | EC6KT9 | EC6KS | EC10KT9 | EC10KS |
|---|---|---|---|---|
| Power rating | 6KVA / 5.4KW | 10KVA / 9KW | ||
| Nominal voltage | 1 phase 208/220/230/240VAC (selectable), derating to 90% load @208V | |||
| INPUT | ||||
| Input voltage range | 120~275VAC 185~275VAC @120% load; 120~185VAC derating to 50% load linear |
|||
| Frequency range | 50/60Hz (Auto-sensing); 40~70Hz (50Hz: 46~54Hz ; 60Hz: 56~64Hz) | |||
| Power factor | > 0.99 | |||
| Harmonic distortion | < 3% | |||
| Generator connection | Yes | |||
| OUTPUT | ||||
| Voltage | 1 phase 208/220/230/240VAC | |||
| Voltage regulation | ±1% | |||
| Frequency | 50/60Hz (Auto-sensing); ±0.1Hz in battery mode | |||
| Power factor (P.F) | 0.9 | |||
| THDv | <2% (Linear load); <4% (Non-linear load) | |||
| Wiring/socket | Hardware terminal connection | |||
| Crest Ratio | 3:1 Max | |||
| Transfer time | (Line <–> Battery) 0ms | |||
| Overload capacity | 105%<load<=125% for 1 minute; 125%<load<=150% for 30s; load>150% for 0.5s | |||
| Protections | Protect against inverter failure, Short-circuit, overload, overvoltage, undervoltage, overtemperature, battery discharge, fan failure… | |||
| BATTERY | ||||
| Battery voltage | 192VDC (Default) | |||
| Battery type | VRLA (Sealed lead-acid maintenance free battery) | |||
| Battery inbuilt | 16*12V7Ah | External batteries | 16*12V9Ah | External batteries |
| Backup time at half load | 9–10 mins | / | 8–9 mins | / |
| Recharging time | 90% capacity restored in 4h (KT9 model) / depend on battery capacity (KS model) | |||
| Battery current | 30A | 30A | 50A | 50A |
| Charging current | 1A | 1–12A (settable) | 1A | 1–12A (settable) |
| OTHERS | ||||
| Display & control | LCD+LED LCD Controlled by (DSP) Digital signal processors control with measurements and settings: Load/Battery/Input- Output voltage/Bypass/Operations mode/input-output Frequency/Events/Fault… |
|||
| LED indicator status | With flash and alarm: BAT mode / Online mode / Bypass mode / Fault When UPS wrong shutdown, low battery, low voltage, overload, fan fault… |
|||
| Transfer time | (Line <–> Battery) 0ms | |||
| Efficiency | 95% at Online mode; 98% at ECO mode | |||
| Communications | RS232, EPO, Intelligent slot-SNMP (Available). SNMP card (Optional) | |||
| Parallel connections | Max 4 | |||
| IP rating | IP20 | |||
| OPERATING ENVIRONMENT | ||||
| Temperature | 0°C ~ 40°C | |||
| Humidity | 0–90% (non-condensing) | |||
| Acoustic Noise | <50dB (1m) | |||
| Altitude | 0–3000m (derating 1% every 100m up @1000–3000m) | |||
| Storage temperature | -25 ~ 55°C | |||
| PHYSICAL | ||||
| Dimension (D*W*H) mm | 191*465*711 | 191*465*350 | 191*495*711 | 191*495*350 |
| Net weight (kg) | 53 | 14.5 | 62 | 16.5 |
DOCUMENTATION
- Please approach our authorized dealer/distributor for details.
- This data may be revised without prior notice. All pictures shown are for illustration purpose only.
